Flow window


This page provides an introduction to the Flow window and the main options when working with Flows in Teneo Studio.

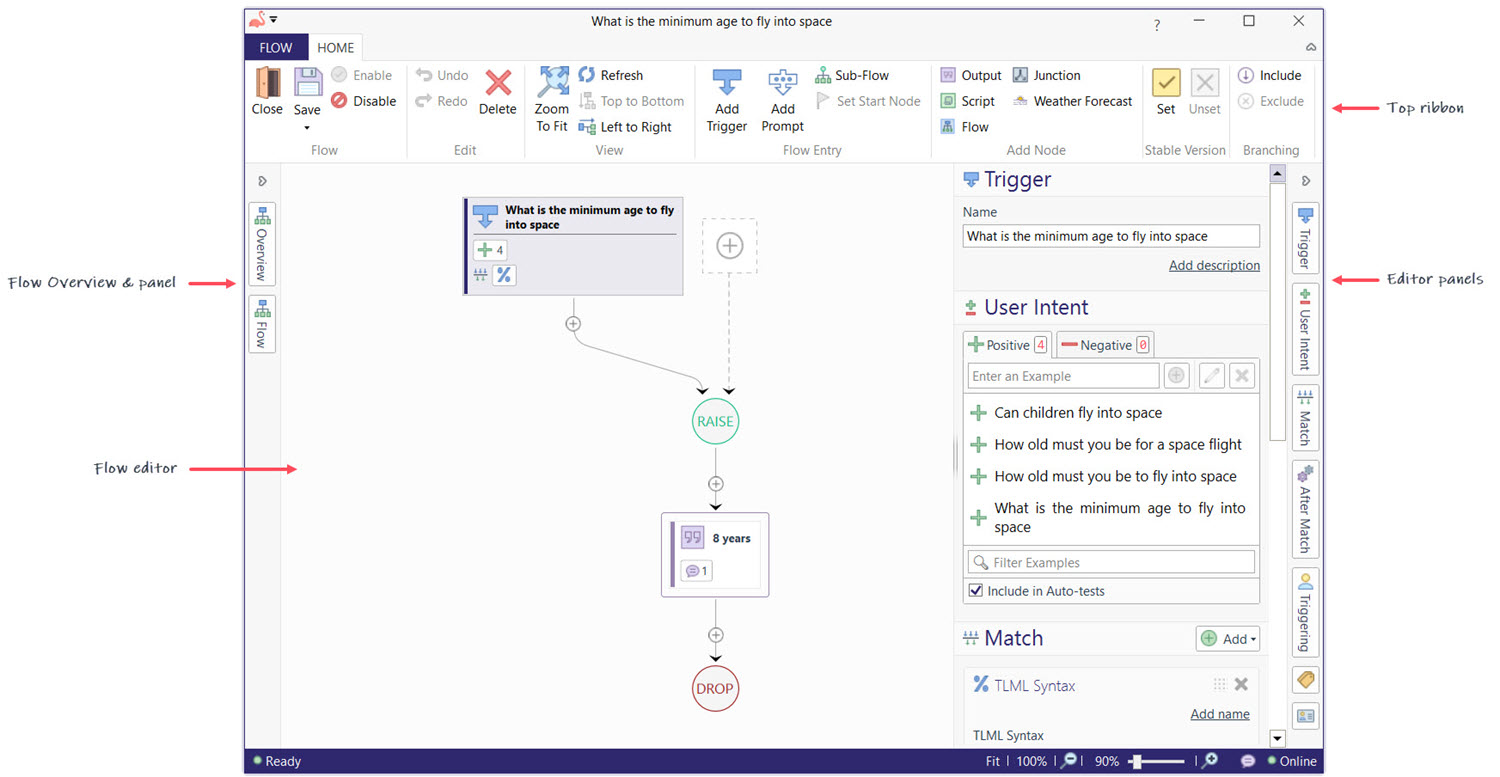

The Flow window of Teneo Studio Desktop consists of two tabs: Home and Flow.

The Home tab contains the following:

  • Top ribbon with editing options and buttons; read more
  • Flow editor or Flow graph providing a visualization of the dialogue as well as Plus icons providing further development options
  • Editor panels (right side) displays different options depending on the selected node in the Flow graph allowing to modify the behavior of the dialogue
  • Flow Overview (left side) provides an overview of the Flow editor, allowing developers to zoom in/out on the Flow graph; expand the panel by clicking the Overview button
  • Flow Panel (left side) provides a view of Flow level definitions related to metadata, variables and Flow listeners; expand the panel by clicking the Flow button
  • Error Panel (left side) appears when Flow errors are detected; learn more

Flow window

The Flow tab consists of a left-side menu with the following:

  • Save allows to save the current version of the Flow
  • Properties allows to edit the name, description and resume prompt of the Flow
  • History contains the history and lists former versions of the Flow
  • Variables allows to add or edit Flow variables
  • Listeners allows to add or edit Flow listeners
  • Metadata allows to add metadata definition at Flow level
  • Scripts allows to add Flow scripts
  • Auto-test provides the option to autotest the Flow at solution level or Flow level
  • Close allows to close the Flow window
