Date and Time NL Analyzer

Introduction

The Teneo Platform natively includes understanding and interpretation of date and time expressions in the below languages:

Date and time handling in the Teneo Platform consists of three parts:

• specific date and time Language Objects in the Teneo Lexical Resources (to understand date and time expressions)
• the DateTime Recognizer Input Processor in the European and Japanese input processing chain (to understand and annotate date and time expressions that aren't easily detected by Language Objects)
• a post-processing handler for interpreting the results of the date time input processor within the solution.

Language Objects

There are three main Language Objects for the date and time understanding.

The Language Objects are language specific and are delivered with the corresponding Teneo Lexical Resource.

Date formats

The DateTime Recognizer Input Processor is able to interpret dates in one of the three formats (e.g. for 30th June 2020):

The defaults for each language are shown in the above table, however, it is easy for solutions to change the interpretation by copying the Language Object DT_CONFIG_YEAR_MONTH_DAY.SUPPORT

, available in the Teneo Lexical Resources, to the local solution and disabling the current interpretation by commenting out the syntax and activating the syntax part for the desired interpretation order.

Annotations

The DateTime Recognizer Input Processor recognizes and annotates various date and/or time expressions, these are then used by the Language Objects to support the Date & Time interpretation. These annotations are intended for internal use, however the information here may help to understand the annotation data which is shown in Try Out.

Named dates

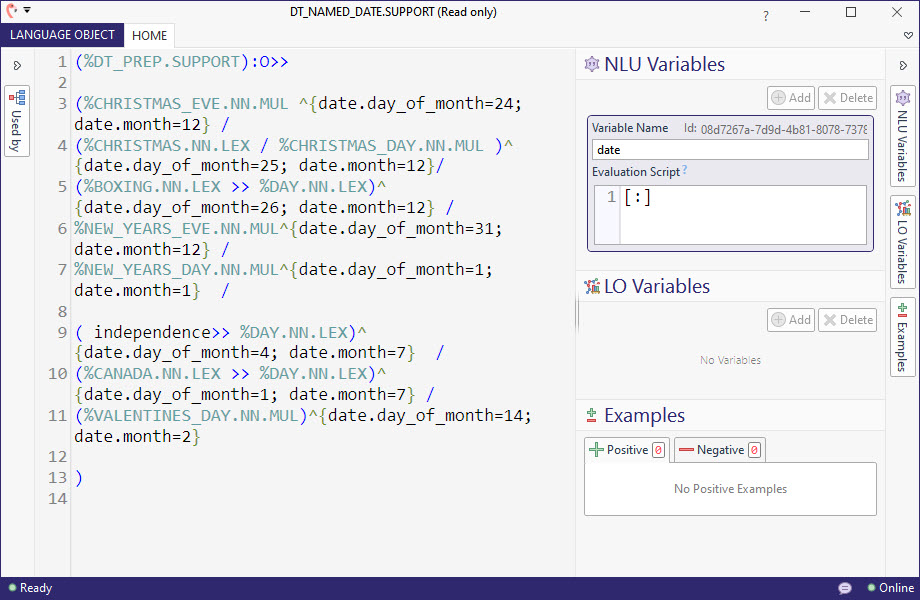

Out-of-the-box, a number of named dates are supported, this list can be extended or modified by making a local copy of the Language Object DT_NAMED_DATE.SUPPORT

and adding the TLML syntax and desired value.

Usage

To make use of the date and time feature of Teneo, use one of the date/time/datetime Language Objects in a TLML Syntax and extract the matched date/time using a propagation script:

1%DT_DATE_TIME.PHR^{ myDateTime = datetime.Handler.interpret(lob.datetime) }
2

Within the above propagation script the NLU variable is passed into the interpret

method on the date time handler in order to convert it into a readily interpretable map.

Date map

Time map

Example Time Range

When a range is mentioned, type == range

and both a start and an end date/time is returned, i.e.

​ from 17:00 until 18:00 tomorrow

1%DT_DATE_TIME.PHR^{ myDateTime = datetime.Handler.interpret(lob.datetime) }
2

1myDateTime = {
2	date = {
3		start = [2019-11-05],
4		type = point
5	},
6	time = {
7		start = [17:00],
8		end = [18:00],
9		type = range
10	}
11}
12

Example Ambiguous Time

Start and end date/time are lists and can return 2 values when the input is ambiguous, i.e.

​ tomorrow at 5

1%DT_DATE_TIME.PHR^{ myDateTime = datetime.Handler.interpret(lob.datetime) }
2

1myDateTime = {
2	date = {
3		start = [2019-11-05],
4		type = point
5	},
6	time = {
7		start = [05:00, 17:00],
8		type = point
9	}
10}
11

Example Interpretation Direction

For some expressions like 'on Monday' or 'in June' the interpretation depends on the context and can denote a date in the past or in the future. By default, the interpretation direction is set to 'forward', but can be changed to 'back', by adding an argument to the DateTime interpreter call:

1dateTime = datetime.Handler.interpret(lob.datetime, "back")
2

​ In June ​ (input given on 6th December 2019)

Forward (default)

1%DT_DATE_TIME.PHR^{ myDateTime = datetime.Handler.interpret(lob.datetime) }
2

1myDateTime = {
2    date = {
3        start = [2020-06-01],
4        end = [2020-06-30],
5        type = range
6    },
7    time = {
8        start = [00:00],
9        type = point
10    }
11}
12

i.e. June 2020

Backward

1%DT_DATE_TIME.PHR^{ myDateTime = datetime.Handler.interpret(lob.datetime, "back") }
2

1myDateTime = {
2    date = {
3        start = [2019-06-01],
4        end = [2019-06-30],
5        type = range
6    },
7    time = {
8        start = [00:00],
9        type = point
10    }
11}
12

i.e. June 2019

Migration

For users of the previous standalone DateTime handler, there are a number of migration steps to act upon when starting to use the native Date & Time feature of Teneo 6:

1. Removal of the global date&time pre-listener
   • It is no longer needed as recognition of collated date and time expressions now is handled by the DateTime Recognizer Input Processor
2. Removal of the DateTimeHandler jar file from Resources > File in the solution
   • Interpretation of date and time expressions is now supported natively within the Engine at runtime
3. Unassigning the DateTime Handler lexical resource form the solution
   • For the release Date and time Language Objects will be delivered with the Teneo Lexical Resources
   • For this Feature Dev Build Rudolph a separate .library
     file will be needed
4. Renaming of Language Objects.
   • Date and time Language Objects for all languages now have the language neutral DT_ prefix and the REC suffix
   • In all languages the three main Language Objects to understand date and/or time expressions in TLML Syntaxes are renamed to: DT_DATE_TIME.REC
     , DT_DATE.REC
     and DT_TIME.REC
     • Old names for these Language Objects are however still supported via the Language Object aliases
   • All other Language Objects are renamed with the new DT_ language neutral prefix, and the newly introduced SUPPORT suffix
   • No backwards compatibility is available for these Language Objects as they are not intended to be used directly
     • If they are already used in a solution - and this cannot be changed - then they must be renamed accordingly, please refer to the Datetime Language Object name map
5. Please note the annotation names are changed to DATE.DATETIME
   and TIME.DATETIME
   . For the time annotation, the variables day_of_month
   , month
   and year
   are now integers not strings. Please note that the language specific configurations are moved into the TLRs (and aren't included in the new input processor). The DateTime Recognizer now adds (up to) three different map variables for the DATE.DATETIME
   annotation as explained further above in the Annotation section.

Deprecated methods

The following static methods are removed from the datetime.Handler

and can no longer be called from solution scripting:

1addNamedDate()
2getNamedDates()
3addNamedTime(...)
4getNamedTime()
5pastOnly(...)
6futureOnly()
7

Named Dates Configuration

As named dates are now configurable within a solution by modifying the DT_NAMED_DATE.SUPPORT

Language Object, the named dates christmas_eve

, new_years

, new_years_eve

, christmas_day

and boxing_day

have now been removed from the Java code.

Appendix - DateTime Language Object name map

• Date and time Language Objects for all languages now have the language neutral DT_ prefix and the REC suffix
• In all languages the three main Language Objects to understand date and/or time expressions in TLML Syntaxes are renamed to: DT_DATE_TIME.REC, DT_DATE.REC
  and DT_TIME.REC
  • Old names for these Language Objects are however still supported via the Language Object aliases
• All other Language Objects are renamed with the new DT_ language neutral prefix, and the newly introduced SUPPORT suffix
• No backwards compatibility is available for these Language Objects as they are not intended to be used directly
